LPD-0.3/26.5-4S microwave divider, wideband rf motlakase

Maqhubu a maqhubu: 0.3-26.5Ghz

Mofuta:LPD-0.3/26.5-4S

Tahlehelo ea ho Kena: 11.9dB

Amplitude Balance: ± 0.5dB

Mokhahlelo oa Tekanyo: ±6

VSWR: 1.4

Ho itšehla thajana: 15-18dB


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Kenyelletso ho Broadband 4way power divider

Li-microwave tse etellang pele li na le karohano ea matla. Ho fapana le li-splitters le lipompo, li-splitters tsa motlakase ha li kenye letsoho phetisong ea 'nete ea matšoao a thelevishene. Ho e-na le hoo, mosebetsi oa eona o ka sehloohong ke ho aba matla a hlokahalang ho matlafatsa lets'oao ho lisebelisoa tse ngata. Ka ho aba matla ka mokhoa o ts'oanang, splitter e netefatsa hore sesebelisoa se seng le se seng se fumana matla a lekaneng ho netefatsa ts'ebetso e nepahetseng le matla a pontšo. Thepa ena e atisa ho sebelisoa lits'ebetsong tse kholo moo li-amplifiers tse ngata li hlokahalang ho boloka lets'oao le matla le le tsitsitseng la cable TV ho pholletsa le marang-rang.

Ka bokhutšoanyane, le hoja li-splitters, li-taps, le li-splitters tsa matla li ka shebahala li tšoana ka lebaka la ho kenya letsoho kabong ea pontšo ea thelevishene, ke habohlokoa ho hlokomela mesebetsi ea bona e fapaneng. Splitter e tsepamisitse maikutlo ho tsamaiseng mats'oao a ho kenya liteisheneng tse lekanang tsa tlhahiso, ho netefatsa botsitso bakeng sa baamoheli bohle. Li-tappers li lumella likarolo tsa lets'oao hore li abeloe ho lipompo kapa basebelisi ba itseng, ho fana ka maemo le ho feto-fetoha ha phetisetso. Qetellong, karohano ea matla e etsa bonnete ba hore matla a ajoa ka ho lekana pakeng tsa li-amplifiers, ho boloka ts'ebetso e nepahetseng ho pholletsa le marang-rang. Ka ho utloisisa liphapang tsena, u ka etsa qeto e nang le tsebo mabapi le hore na ke lisebelisoa life tse loketseng litlhoko tsa hau tsa kabo ea thelevishene.

Moetapele-mw Tlhaloso

Litlhaloso tsa LPD-0.3/26.5-4S wideband rf motsoako oa matla

Marang-rang: 300 ~ 26500MHz
Kenyelletso Los: ≤11.9dB
Amplitude Balance: ≤±0.5dB
Phase Balance: ≤6 deg
VSWR: ≤1.40 : 1
Ho behwa ka thoko: ≥15dB(0.3GHz-2GHz)
Tšitiso: 50 OHMS
Lihokelo tsa Boema-kepe): SMA-Mosali
Ho sebetsana le Matla: 30 Watts

Maikutlo:

1, Se kenyeletse tahlehelo ea Khopolo 6db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1

Moetapele-mw Litlhaloso tsa Tikoloho
Mocheso oa Ts'ebetso -30ºC ~ +60ºC
Mocheso oa polokelo -50ºC ~ +85ºC
Ho thothomela 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis
Mongobo 100% RH ho 35ºc, 95%RH ho 40ºc
Ho tshoha 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli
Moetapele-mw Litlhaloso tsa Mechini
Matlo Aluminium
Sehokedi ternary alloy three-partalloy
Kopana le Basali: boronse ea beryllium e entsoeng ka khauta
Rohs lumellana
Boima ba 'mele 0.25kg

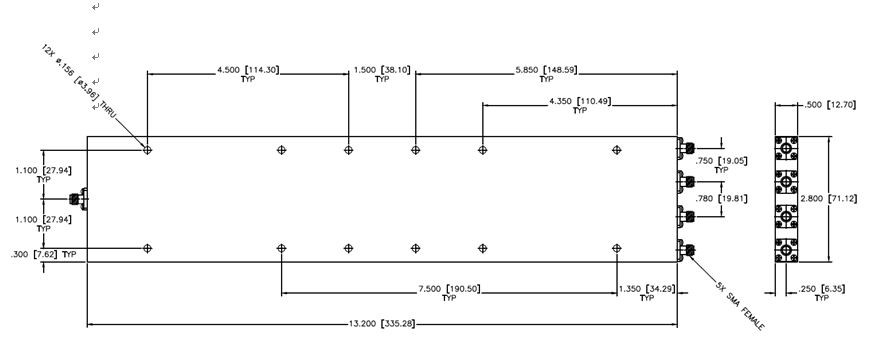

Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo Tsohle: SMA-Female

0.3-26.5-4

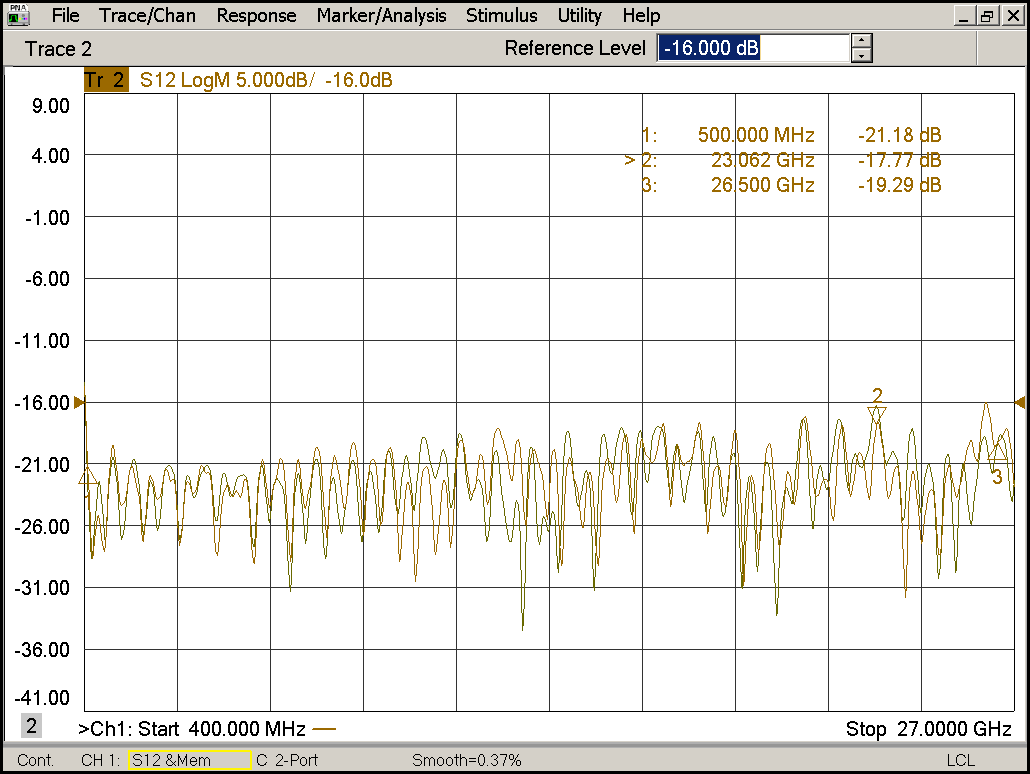

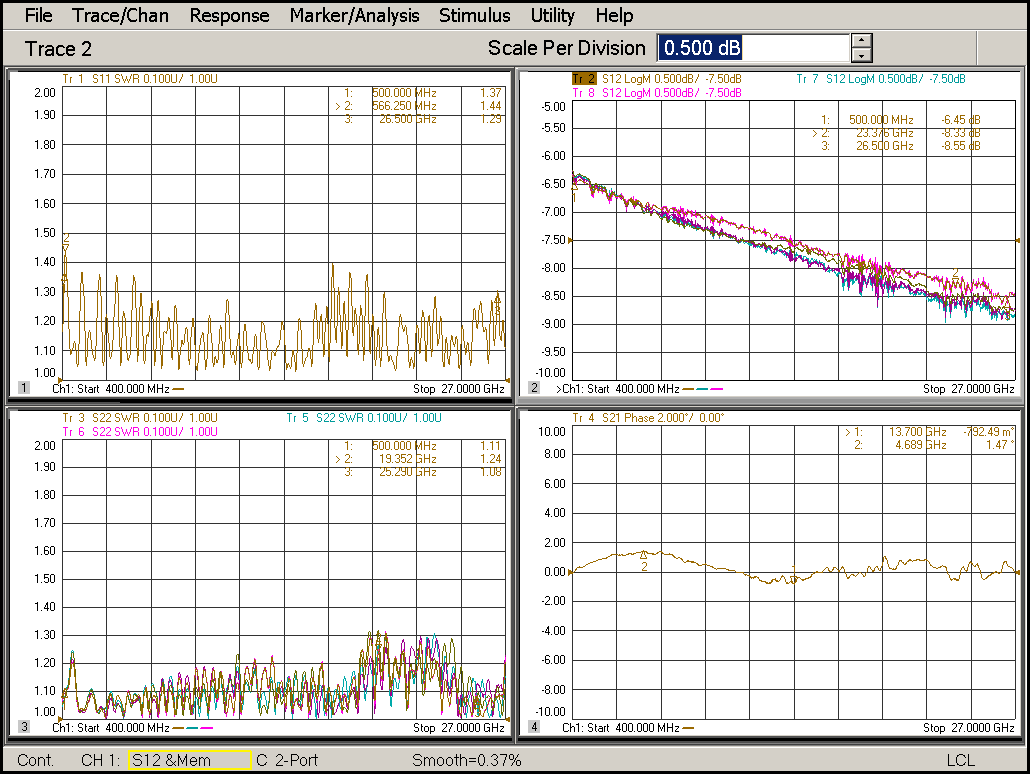

Moetapele-mw Lintlha tsa Tlhahlobo
9.2
9.1
