Moetapele-mw | Selelekela 4-40Ghz 4 tsela ea ho arola matla |
Kenyelletso ho Microstrip Power Dividers: Revolutionizing Kabo ea Matla le Synthesis
Microstrip power divider, eo hape e tsejoang e le karohano ea matla kapa kompone, ke sesebelisoa sa sejoale-joale se etselitsoeng ho arola matla a lets'oao le le leng la ho kenya liphetho tse ngata ka kabo ea matla e lekanang kapa e sa lekanang. Ntle le moo, e ka kopanya matla a mats'oao a mangata hore e be sephetho se le seng sa potoloho. Sepheo se seholo sa karohano ena ea matla ke ho netefatsa hore ho na le tekanyo e itseng ea ho itšehla thajana pakeng tsa likou tse hlahisoang 'me ka hona ho na le likarolo tse ngata tse molemo tse etsang hore e be mokhoa o tsotehang haholo lefapheng lena.
Monyetla o ka sehloohong oa li-divider tsa matla a microstrip ke mefuta e mengata ea maqhubu a ts'ebetso ea bona. Hore na o hloka maqhubu a kakaretso a mehala kapa lits'ebetso tse ikhethang joalo ka microwave le millimeter wave frequency, sesebelisoa sena se sebetsa ka mefuta e mengata ho lekana ho fana ka litlhoko tse fapaneng. Bokhoni ba eona ba ho sebetsa ka bongata bo boholo bo etsa hore e be e loketseng bakeng sa lits'ebetso tse fapaneng, ho kenyeletsoa lits'ebetso tsa puisano tse se nang mohala, litsamaiso tsa radar, litsamaiso tsa puisano tsa sathelaete, le tse ling.
Moetapele-mw | Tlhaloso |
Mofuta oa No: LPD-4/40-4S Broadband Millimeter Wave Planar Power Combiner
Marang-rang: | 4000 ~ 40000MHz |
Tahlehelo ea Kenyelletso: | ≤2.5dB |
Amplitude Balance: | ≤±0.7dB |
Phase Balance: | ≤± 10 deg |
VSWR: | ≤1.65 : 1 |
Ho behwa ka thoko: | ≥16dB |
Tšitiso: | 50 OHMS |
Lihokelo : | 2.92-Mosali |
Thempereichara ea ho sebetsa: | -32℃ho+85℃ |
Ho sebetsana le Matla: | 20 Watts |
Maikutlo:
1, Se kenyeletse tahlehelo ea Khopolo 6db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1
Moetapele-mw | Litlhaloso tsa Tikoloho |
Mocheso oa Ts'ebetso | -30ºC ~ +60ºC |
Mocheso oa polokelo | -50ºC ~ +85ºC |
Ho thothomela | 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis |
Mongobo | 100% RH ho 35ºc, 95%RH ho 40ºc |
Ho tshoha | 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli |
Moetapele-mw | Litlhaloso tsa Mechini |
Matlo | Aluminium |
Sehokedi | Ts'epe e sa beng le mabali |
Kopana le Basali: | boronse ea beryllium e entsoeng ka khauta |
Rohs | lumellana |
Boima ba 'mele | 0.15kg |
Setšoantšo sa Outline:
Litekanyo tsohle ka mm
Mamello ea Tlhaho ± 0.5(0.02)
Mamello ea Likoti tse Mount ±0.2(0.008)
Lihokelo tsohle: 2.92-Mosali

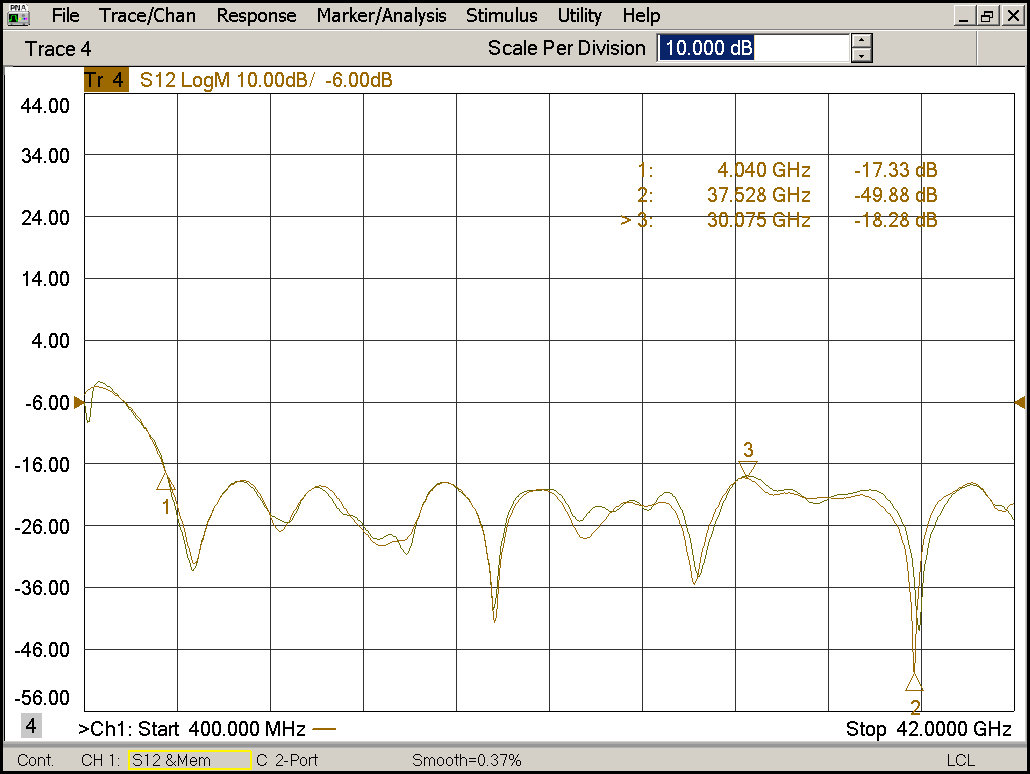

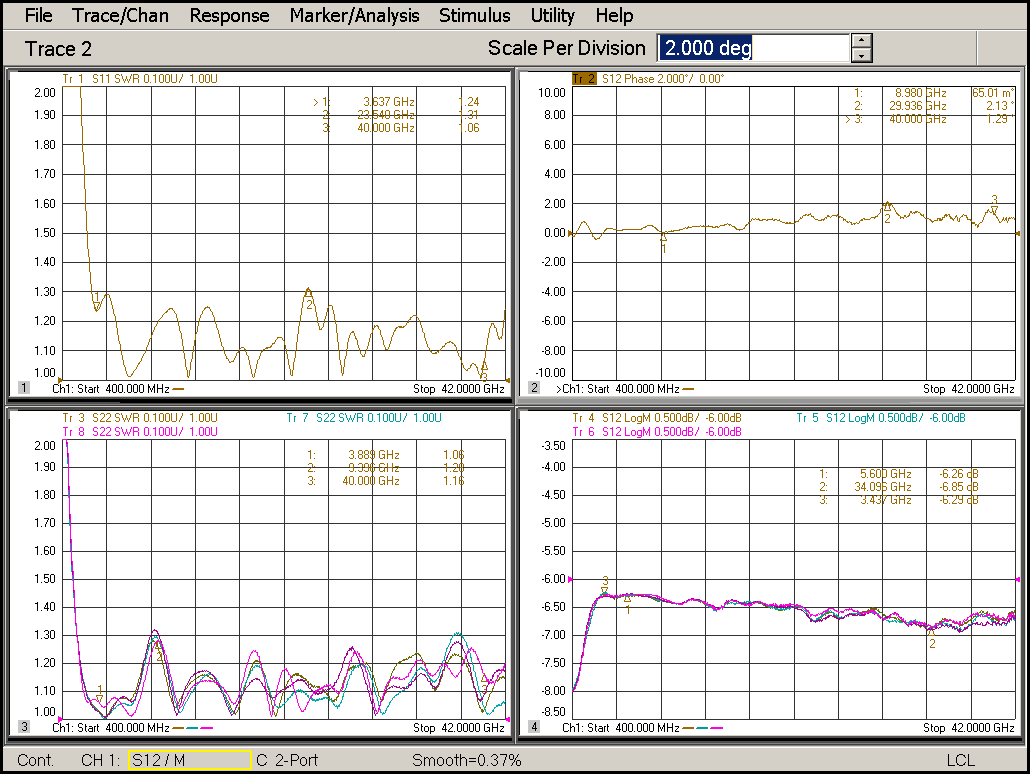

Moetapele-mw | Lintlha tsa Tlhahlobo |
Moetapele-mw | Phano |
Moetapele-mw | Kopo |
