Ultra-flexible Test Cable Assemblies

Mofuta: LHS107-SMSM-XM

Hangata: DC-18Ghz

VSWR: 1.3

Sehokelo:SMA-M


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Kenyelletso ea Likopano tsa Cable tsa Teko tsa Ultra-Flexible

Chengdu Leader Microwave Tech.,(LEADER-MW) LHS107-SMSM-XM Ultra-flexible Test Cable Assemblies ke lik'habole tsa liteko tsa boleng bo holimo tse sebelisoang haholo bakeng sa liteko tse phahameng tsa maqhubu ho tloha ho DC ho ea ho 18 GHz. Kopano ea cable e na le 50 ohm impedance, e fanang ka ts'ebetso e ntle ea phetisetso ea mats'oao. Moralo oa eona o ikhethang oa ho feto-fetoha o netefatsa ho ts'epahala libakeng tse thata le libakeng tse khelohileng haholo. Kopano ea cable e bonolo ho hokahanya le ho hakolla 'me e loketse mefuta e sa tšoaneng ea liteko. LHS107-SMSM-XM ea mohlala e bolela hore likhokahano lipheletsong tse peli tsa kopano ea cable ke lihokelo tse nyane tsa SMA, 'me bolelele ba mohala ke 1 m.

Moetapele-mw Tlhaloso

Nomoro ea mofuta: LHS107-SMSM-XM li-cable flexible phases

Marang-rang: DC ~ 18000MHz
Impedance:. 50 OHMS
Nako ea ho lieha: (nS/m) 4.01
VSWR: ≤1.3 : 1
Dielectric voltage: 1600
ts'ireletso e sebetsang hantle (dB) ≥90
Lihokelo tsa Boema-kepe: SMA-e motona
sekhahla sa phetisetso (%) 83
Temperature phase stability (PPM) ≤550
Flexural phase stability (°) ≤3
Flexural amplitude stability (dB) ≤0.1

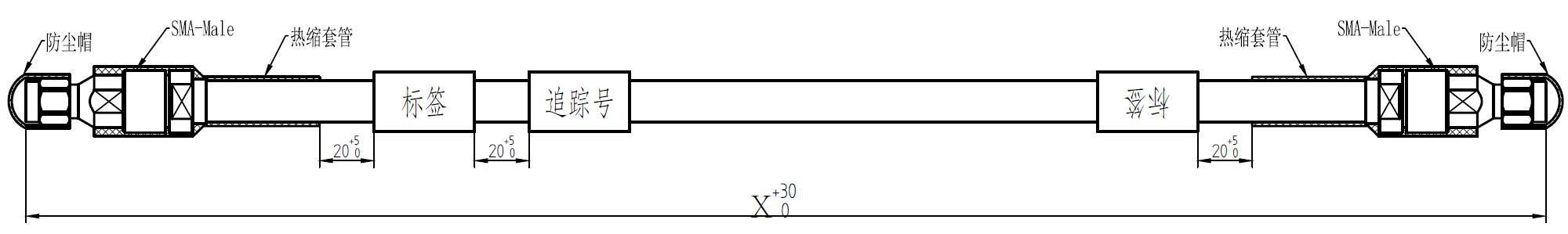

Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo Tsohle: SMA-M

12
Moetapele-mw Tshebetso ea mechine le ea tikoloho
Bophara ba ka ntle ba thapo (mm): 7.5
Bonyane sebaka se kobehang (mm) 75
Thempereichara ea ho sebetsa (℃) -50~+165
Moetapele-mw Attenuation(dB)
LHS107-SMSM-0.5M 0.9
LHS107-SMSM-1M 1.2
LHS107-SMSM-1.5M 1.55
LHS107-SMSM-2.0M 1.85
LHS107-SMSM-3M 2.55
LHS107-SMSMM-5M 3.9
Moetapele-mw Sebopeho

Ultra-flexible Test Cable Assemblies e na le mohlala oa LHS107-SMSM-XM e nang le maqhubu a fapaneng a DC ho isa ho 18,000 MHz le e sitisang 50 ohms.

Lihlahisoa Litšobotsi

■ Moralo o feto-fetohang haholo bakeng sa khokahano e bonolo le radius e kobehang ■ Sebopeho se matla haholo, se ka felisa khatello ea maikutlo, sa lelefatsa bophelo ba ts'ebeletso ■ Thapo e sirelelitsoeng ka makhetlo a mararo, tšireletso e ntle haholo ■ Sehokelo sa mofuta oa N-stainless steel se nang le potoloho e telele e ts'oanang ■ Tiisetso ea likhoeli tse tšeletseng.

Ultra-flexible Test Cable Assemblies molemo

Ultra-flexible Test Cable Assemblies ke lik'habole tse ntle haholo tsa liteko tse khonang ho fana ka ts'ebetso e ntle le botsitso bakeng sa tlhahlobo ea maqhubu a holimo. Model LHS107-SMSM-XM e loketse mofuta oa frequency DC ho isa ho 18,000 MHZ e nang le 50 ohm resistance. Mona ke melemo e 'maloa ea mohlala ona:

1. Ho feto-fetoha ha maemo ho phahameng: boleng bo phahameng le mohala o bonolo haholo o sebelisoa ho etsa bonnete ba ho sisinyeha ho feto-fetoha le ho khumama libakeng tse sa tšoaneng tsa liteko ntle le ho kena-kenana le phetiso ea matšoao kapa ho senyeha ha tshebetso.

2. Ho tšoarella ho matla: Ka mor'a ho qaptjoa ka hloko le ho etsoa ha lisebelisoa tsa boleng bo phahameng tsa cable, ho sebelisa thepa ea boleng bo phahameng ea letlalo le matsoho a tšepe a lohiloeng ka thata, e ka sireletsa mohala hore o se ke oa senyeha kapa oa senyeha, kahoo o lelefatsa bophelo ba oona ba tšebeletso.

3. Tahlehelo e tlaase: Cable ea teko ea LHS107-SMSM-XM e bokelloa ka li-connectors tsa boleng bo phahameng ba RF, tse ka netefatsang lebelo le phahameng la phetisetso ea matšoao le tahlehelo e tlaase, e le ho ntlafatsa ho nepahala le ho nepahala ha tlhahlobo.

4. Ho bonolo ho e sebelisa: Moqapi oa kopano ea cable ea teko o lumellana le molao-motheo oa ergonomic, o ka laoloang habonolo ke mosebedisi ntle le ho baka mokhathala oa letsoho, kahoo o netefatsa ho nepahala ha data ea teko.

5. Tšireletso e phahameng: E ​​le ho netefatsa polokeho ea bahlahlobi, kopano ea cable ea LHS107-SMSM-XM ea teko e amohela tšireletso e nepahetseng ea motlakase oa motlakase le ts'ebetso ea conductive, e ka qobang ka katleho tšokelo ea mahlaseli a motlakase bophelong ba batho.
