Sefe ea ho fanyeha ea ho palama e phahameng LPF-DC/8400-2S
| Moetapele-mw | Selelekela sa Sefa sa ho Suspension Line High-Pass LPF-DC/8400-2S |
LPF-DC/8400-2S ke sefe se ikhethileng se nang le pass e tlase se etselitsoeng lits'ebetso tse itseng tse amanang le maqhubu.
Mefuta e fapaneng ya maqhubu: E na le lebanta la ho fetisa le tlohang ho DC ho isa ho 8.4GHz, e leng se etsang hore e lokele ditshebediso tse hlokang phetiso ya matshwao a ho potoloha le a hona jwale hammoho le matshwao a ka hara mefuta ena e phahameng ya maqhubu. Lebanta lena le pharaletseng la ho fetisa le ka sebediswa ditsamaisong tse fapaneng tsa puisano, tse kang puisano ya sathelaete, diteishene tsa motheo tsa 5G, le ditsamaiso tsa radar tse sebetsang ka hara lebanta lena la maqhubu.
Litekanyo tsa Tshebetso: Tahlehelo ea ho kenya ke ≤0.8dB, ho bolelang hore ha matšoao a feta ka har'a sefe, ho fokotseha ha molumo ho batla ho le tlase, ho netefatsa hore matla a lets'oao a lula a le holimo. VSWR (Voltage Standing Wave Ratio) ea ≤1.5:1 e bontša ho lumellana hantle ha impedance, e fokotsang ho bonahatsa ha lets'oao. Ka ho haneloa ha ≥40dB ka har'a maqhubu a 9.8 - 30GHz, e thibela matšoao a sehlopha ka katleho, e ntlafatsa khetho ea sefe.
Sehokelo: Se na le sehokelo sa SMA - F, se fana ka khokahano e bonolo le e tšepahalang, e nolofalletsang ho kopanngoa ho se nang mathata ho li-setup tse seng li ntse li le teng.
| Moetapele-mw | Tlhaloso |
| Sekhahla sa Maqhubu | DC-8.4GHz |
| Tahlehelo ea ho Kena | ≤1.0dB |
| VSWR | ≤1.5:1 |
| Ho lahloa | ≥40dB@9.8-30Ghz |
| Ho Tsamaisa Matla | 2.5W |
| Lihokelo tsa Kou | SMA-Mosadi |
| Qetello ea Bokaholimo | Botsho |
| Tlhophiso | Jwalo ka Ka tlase (mamello ± 0.5mm) |
| 'mala | botsho |
Litlhaloso:
Tekanyo ea matla e betere bakeng sa mojaro vs wr ho feta 1.20:1
| Moetapele-mw | Litlhaloso tsa Tikoloho |
| Mocheso o Tshebetso | -30ºC~+60ºC |
| Mocheso oa Polokelo | -50ºC~+85ºC |
| Ho thothomela | 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis |
| Mongobo | 100% RH ho 35ºc, 95%RH ho 40ºc |
| Tšabo | 20G bakeng sa leqhubu la halofo ea sine la 11msec, li-axis tse 3 ka mahlakoreng ka bobeli |
| Moetapele-mw | Litlhaloso tsa Mekaniki |
| Matlo | Aluminium |
| Sehokelo | motsoako oa ternary oa likarolo tse tharo |
| Mosali ea ka ikopanyang le eena: | khauta e manehiloeng ka beryllium boronse |
| Ma-Roh | e lumellanang le melao |
| Boima ba 'mele | 0.10kg |

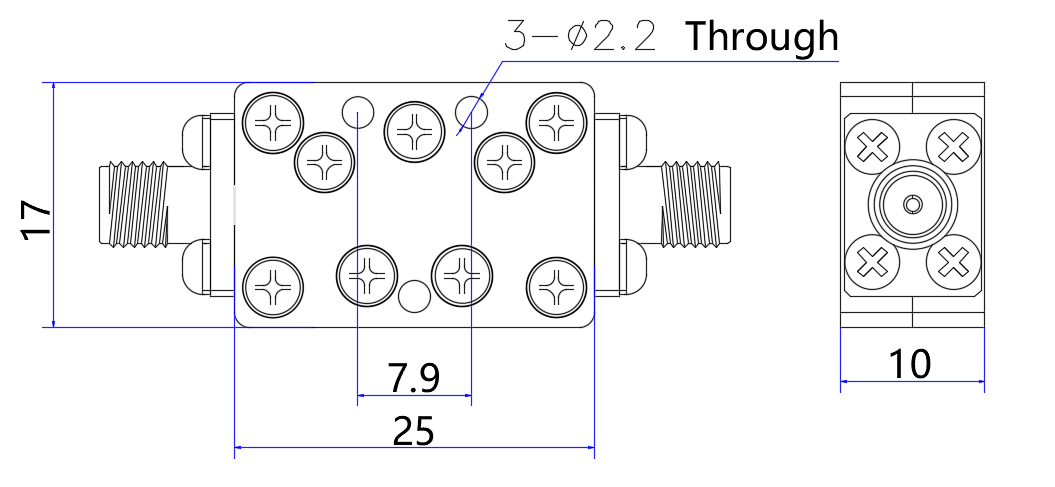

Setšoantšo sa Kemiso:
Litekanyo Tsohle ka mm
Mamello ea Kakaretso ± 0.5(0.02)
Mamello ea Likoti tse Kenang ± 0.2(0.008)
Lihokelo Tsohle: SMA-Female

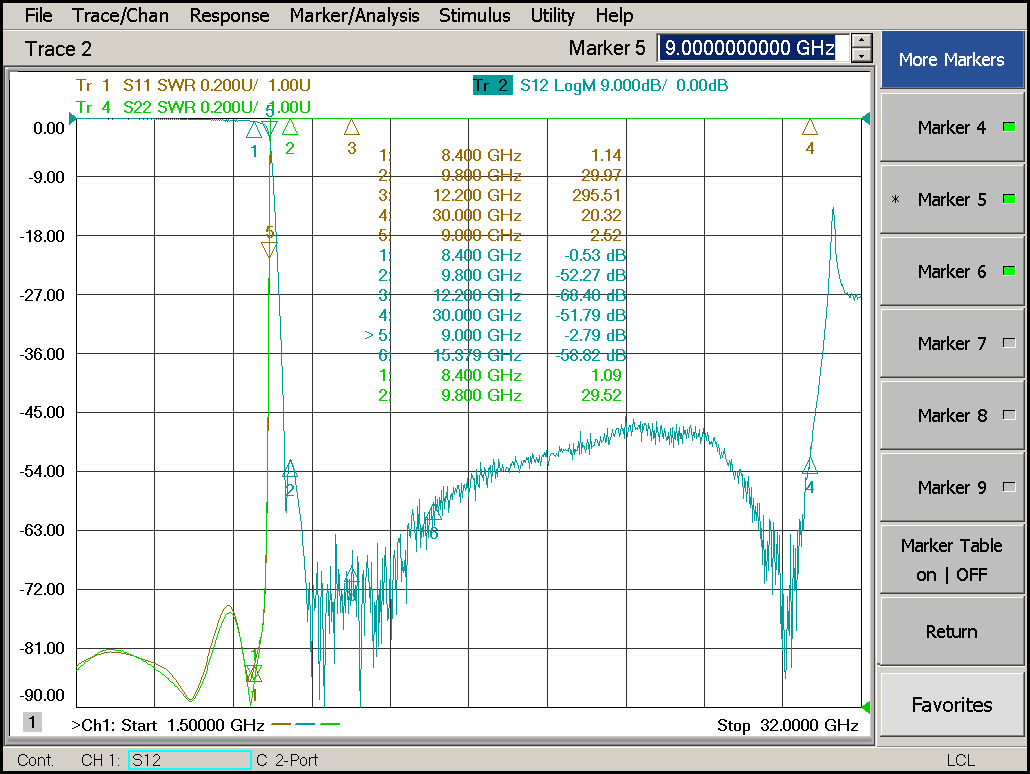

| Moetapele-mw | Lintlha tsa Teko |
