LPD-2/18-2S 2-18Ghz 2 tsela ea ho arola matla



Mofuta oa Nomoro:LPD-2/18-2S Hangata:2-18Ghz

Tahlehelo ea ho Kena: 0.7dB Amplitude Balance: ± 0.3dB

Mohato oa Tekanyo: ± 3 VSWR: 1.4

Ho itšehla thajana:18dB Sehokelo:SMA-F


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Selelekela

Ho hlahisa LPD-2/18-2S 2-18Ghz 2 Way Power Divider, e leng tharollo e se nang moeli bakeng sa ho arola matšoao a RF ka ho nepahala le ka katleho. Sesebelisoa sena sa boqapi se etselitsoe ho khahlametsa litlhoko tsa lits'ebetso tsa sejoale-joale tsa puisano, se fanang ka kopanyo e se nang moeli le ts'ebetso e tšepahalang ho pholletsa le mefuta e mengata ea maqhubu.

LPD-2/18-2S karohano ea matla e etselitsoe ho fana ka bokhoni bo ikhethang ba ho arola mats'oao, ho e etsa khetho e nepahetseng bakeng sa lits'ebetso tse fapaneng indastering ea likhokahano tsa mehala, sefofane le ts'ireletso. Ka ts'ebetso ea eona e pharalletseng ea maqhubu ho tloha ho 2 ho isa ho 18GHz, karohano ena ea matla e fana ka maemo le ho feto-fetoha ha maemo bakeng sa litlhoko tse fapaneng tsa kabo ea mats'oao a RF.

E na le theknoloji e tsoetseng pele, LPD-2 / 18-2S e netefatsa tahlehelo e fokolang ea ho kenya le ho itšehla thajana ho babatsehang pakeng tsa likou tse hlahisoang, ho boloka botšepehi ba matšoao le ho fokotsa tšitiso. Sena se fella ka boleng bo matlafalitsoeng ba mats'oao le ho ts'epahala, ho e etsa karolo ea bohlokoa bakeng sa litsamaiso tsa bohlokoa tsa puisano.

Moralo o kopaneng le o matla oa karohano ea matla ea LPD-2/18-2S e etsa hore e tšoanelehe bakeng sa liteko tsa laboratori le ho romelloa ha masimo a matsutla. Kaho ea eona e tšoarellang le likarolo tsa boleng bo phahameng li netefatsa ts'ebetso ea nako e telele le botsitso libakeng tse hlokang.

Ebang e sebelisoa litsamaisong tsa radar, puisano ea sathelaete, kapa marang-rang a se nang mohala, LPD-2/18-2S karohano ea motlakase e fana ka kopanyo e se nang moeli le ts'ebetso e tšepahalang, e tlatsetsang katlehong le katlehong ea kabo ea mats'oao a RF.

Qetellong, LPD-2/18-2S 2-18Ghz 2 Way Power Divider e beha maemo a macha bakeng sa theknoloji ea ho arola lipontšo, e fana ka ts'ebetso e ikhethang, e ts'eptjoang le e fapaneng ho pholletsa le mefuta e mengata ea maqhubu. Ka likarolo tsa eona tse tsoetseng pele le kaho e matla, karohano ena ea motlakase ke letlotlo la bohlokoa bakeng sa ts'ebeliso efe kapa efe ea kabo ea mats'oao a RF, e fanang ka ts'ebetso e ts'oanang le ea boleng bo holimo maemong a fapaneng a ts'ebetso.

Moetapele-mw Tlhaloso

Mofuta oa No: LPD-2/18-2S Karohano ea matla a litsela tse peli

Marang-rang: 2000 ~ 18000MHz
Tahlehelo ea Kenyelletso: ≤0.7dB
Amplitude Balance: ≤±0.3dB
Phase Balance: ≤±3deg
VSWR: ≤1.40 : 1
Ho behwa ka thoko: ≥18dB
Tšitiso: 50 OHMS
Lihokelo tsa Port : SMA-Mosali
Ho sebetsana le Matla: 20 Watts



Maikutlo:

1, Se kenyeletse tahlehelo ea Khopolo 3db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1

Moetapele-mw Litlhaloso tsa Tikoloho
Mocheso oa Ts'ebetso -30ºC ~ +60ºC
Mocheso oa polokelo -50ºC ~ +85ºC
Ho thothomela 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis
Mongobo 100% RH ho 35ºc, 95%RH ho 40ºc
Ho tshoha 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli
Moetapele-mw Litlhaloso tsa Mechini
Matlo Aluminium
Sehokedi ternary alloy three-partalloy
Kopana le Basali: boronse ea beryllium e entsoeng ka khauta
Rohs lumellana
Boima ba 'mele 0.15kg

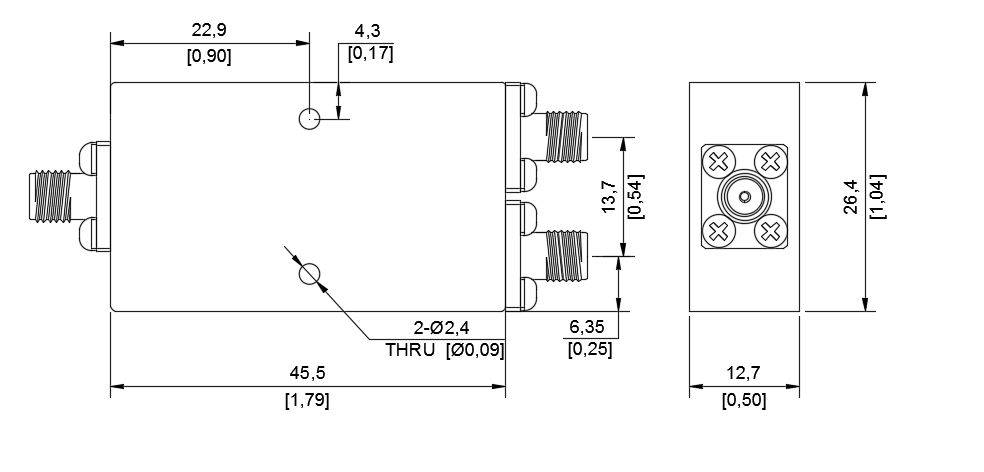

Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo Tsohle: SMA-Female

2-18-2

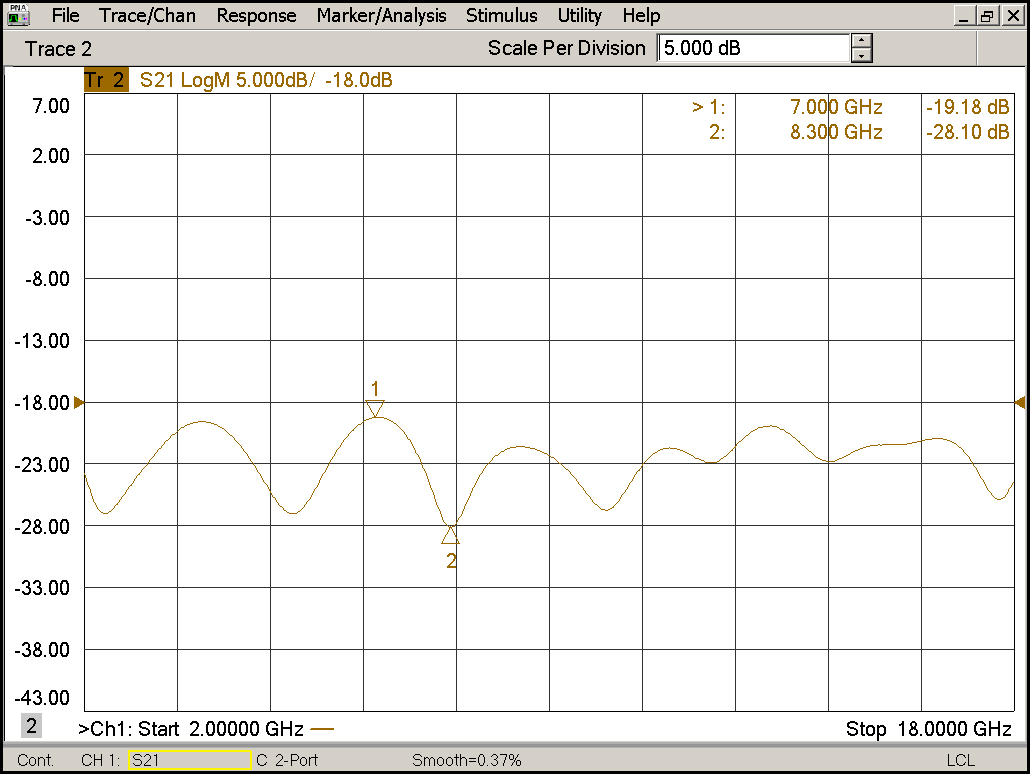

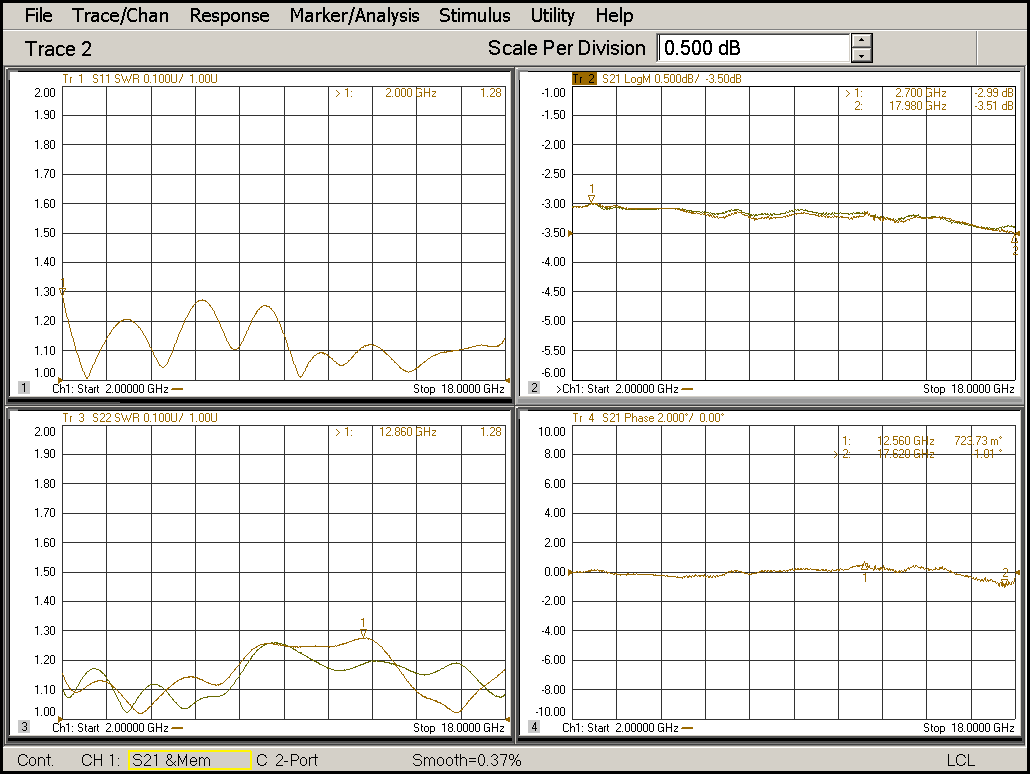

Moetapele-mw Lintlha tsa Tlhahlobo
02.1
02.2
