LPD-0.005/1-2S 5mhz-1000mhz 2 tsela e arohaneng ea motlakase

Maqhubu a maqhubu: 0.005-1Ghz

Mofuta:LPD-0.005/1-2s

Tahlehelo ea ho Kena: 1.2dB

Amplitude Balance: ± 0.5dB

Mohato:±3dB

VSWR: 1.5

Ho itšehla thajana:20dB

Sehokelo:SMA-F

Matla: 1w


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Selelekela

Ho hlahisa LPD-0.005/1-2S 5mhz-1000mhz 2-way power splitter voltage divider, e leng tharollo e phethahetseng ea ho aba le ho aba matshwao a RF ka nepo le ka bokgabane. E etselitsoe ho fihlela litlhoko tsa mekhoa ea morao-rao ea likhokahano, karohano ea matla a boleng bo holimo e fana ka ts'ebetso e tšepahalang ho feta mefuta e mengata ea maqhubu.

Ka moralo oa eona o kopanetsoeng le o tšoarellang, LPD-0.005/1-2S e khona ho mamella mathata a ts'ebeliso ea litsebi, e etsa hore e be e loketseng bakeng sa mefuta e fapaneng ea likopo tse kenyelletsang likhokahano tsa mehala, phatlalatso le marang-rang a se nang mohala. Hore na o hloka ho arola mats'oao bakeng sa liteko, ho beha leihlo kapa ho ajoa, mochini ona oa motlakase o fana ka liphetho tse ts'oanang le tse nepahetseng.

Sekhahla sena sa motlakase se sebelisa theknoloji e tsoetseng pele e nang le tahlehelo e tlase ea ho kenya le ts'ebetso e ntle ea ho itšehla thajana ho netefatsa ho fokotsa matšoao le ho sebetsa hantle haholo. Tlhophiso ea eona ea 2-way e thusa karohano ea mats'oao a seamless, e e etsa sesebelisoa se feto-fetohang bakeng sa ho ntlafatsa kabo ea matšoao lits'ebetsong tse rarahaneng tsa RF.

LPD-0.005/1-2S e etselitsoe ho fana ka ts'ebetso e ntle haholo ho 5MHz ho isa ho 1000MHz, e etsa hore e tšoanele litlhoko tse fapaneng tsa kabo ea mats'oao a RF. Hore na o sebetsa ka mats'oao a maqhubu a tlase kapa lits'ebetso tse phahameng haholo, sekhechana sena sa motlakase se u fang maemo le ts'epahalo eo u e hlokang hore mosebetsi o phethoe.

Ntle le bokhoni ba eona ba tekheniki, LPD-0.005/1-2S e etselitsoe ho hokahanngoa habonolo ho litsamaiso tse seng li ntse li le teng 'me e na le likhokahano tse tloaelehileng bakeng sa ho kenya habonolo le ho tsamaellana le lisebelisoa tse ngata tse fapaneng tsa RF. Kaho ea eona e matsutla-tsutla le likarolo tsa boleng bo holimo li netefatsa ho tšoarella ha nako e telele le ts'ebetso e tsitsitseng libakeng tse thata.

Ka kakaretso, LPD-0.005/1-2S 5mhz-1000mhz 2-Way Power Divider Splitter ke tharollo e tšepahalang le e sebetsang ea ho arola le ho aba matshwao a RF ka nepo le ha bonolo. Hore na o porofeshenale indastering ea likhokahano kapa motho ea ratang ho itlosa bolutu ea sebetsang mererong ea RF, sesebelisoa sena sa ho arola motlakase ke sesebelisoa sa bohlokoa ho ntlafatsa phano ea mats'oao le ho netefatsa ts'ebetso e tšepahalang ea sistimi ea hau ea RF.

Moetapele-mw Tlhaloso

Mofuta oa No:LPD-1/18-2S Karohano ea matla a litsela tse peli

Marang-rang: 5 ~ 1000MHz
Tahlehelo ea Kenyelletso: ≤1.2dB
Amplitude Balance: ≤±0.5dB
Phase Balance: ≤± 3 deg
VSWR: ≤1.50 : 1
Ho behwa ka thoko: ≥20dB
Tšitiso: 50 OHMS
Lihokelo tsa Port : SMA-Mosali
Ho sebetsana le Matla: 1 Watt



Maikutlo:

1, Se kenyeletse tahlehelo ea Khopolo 3db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1

Moetapele-mw Litlhaloso tsa Tikoloho
Mocheso oa Ts'ebetso -30ºC ~ +60ºC
Mocheso oa polokelo -50ºC ~ +85ºC
Ho thothomela 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis
Mongobo 100% RH ho 35ºc, 95%RH ho 40ºc
Ho tshoha 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli
Moetapele-mw Litlhaloso tsa Mechini
Matlo Aluminium
Sehokedi ternary alloy three-partalloy
Kopana le Basali: boronse ea beryllium e entsoeng ka khauta
Rohs lumellana
Boima ba 'mele 0.1kg

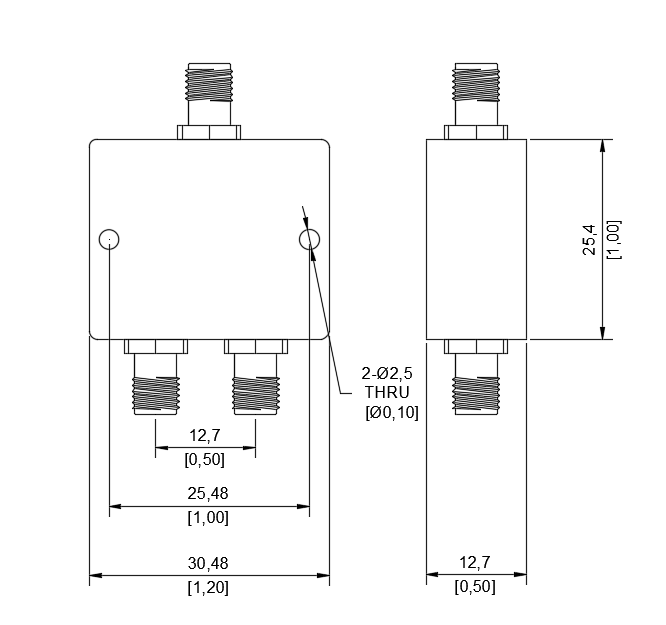

Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo Tsohle: SMA-Female

2 tsela
