LGL-28.9/29.5-2.92 K sehlopha sa Coaxial Isolator
| Moetapele-mw | Selelekela ho LGL-28.9/29.5-2.92 K Band Coaxial Isolator |
LGL-28.9/29.5-2.92 K Band Coaxial Isolator, e nkiloeng ho moetapele-mw 'me e na le sehokelo sa 2.92 mm, e entsoe ka boqhetseke ho sebetsana le litlhoko tse rarahaneng tsa mekhoa ea puisano ea microwave e sebetsang ka har'a K band frequency spectrum (28.9-29.5) GHz). Sehlahisoa sena se sebetsang hantle haholo se bapala karolo ea bohlokoa ho netefatsa phetisetso ea mats'oao ka tsela e ts'oanang ha se ntse se fokotsa ponts'o ea mats'oao le tšitiso e sa batleheng, ka ho etsa joalo se boloka botsitso ba matšoao le ho ntlafatsa ts'ebetso ea sistimi.
Ka tahlehelo ea ho kenya 0.3 dB feela, e tiisa ho fokotsa matla a fokolang, ho boloka matla a lets'oao le fetisoang. Ts'ebetso ea eona e makatsang ea ho itšehla thajana, e fetang 20 dB, e netefatsa hore matšoao afe kapa afe a bonahatsoang a hatelloa haholo, a ba thibela ho senya ts'ebetso ea likarolo tse amohelang maikutlo kapa ho baka ho se tsitse ha sistimi. LGL-28.9 / 29.5-2.92 K Band Coaxial Isolator e ithorisa ka VSWR (Voltage Standing Wave Ratio) e ka tlase ho 1.3, e bonts'ang bokhoni ba eona bo botle ba ho bapisa boits'oaro, bo kenyang letsoho ho phetiso e nepahetseng ea matla le tahlehelo e fokotsehileng.
| Moetapele-mw | Tlhaloso |
| Che. | Paramethara | +25°C | -30~+70°C | Diyuniti |
| 1 | Sebaka sa maqhubu | 28.9-29.5 | GHz | |
| 2 | Tahlehelo ea Kenyelletso | ≤0.4 | ≤0.6 | dB |
| 3 | Ho behwa ka thoko | ≥20 | ≥18 | dB |
| 4 | VSWR | ≤1.2 | ≤1.25 | dB |
| 5 | Tšitiso | 50 | Ω | |
| 6 | Matla a Tsoelang Pele | 5W/cw 1W/RV | ||
| 7 | Sebaka sa Mocheso oa Ts'ebetso | -30℃+70℃ | ||
| 8 | Sehokedi | 2.92-F | ||
| 9 | Tataiso | 1→2→ ho ea ka nako | ||
Maikutlo:
Tekanyetso ea matla ke ea mojaro vswr ho feta 1.20: 1
| Moetapele-mw | Litlhaloso tsa Tikoloho |
| Mocheso oa Ts'ebetso | -30ºC ~ +70ºC |
| Mocheso oa polokelo | -50ºC ~ +85ºC |
| Ho thothomela | 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis |
| Mongobo | 100% RH ho 35ºc, 95%RH ho 40ºc |
| Ho tshoha | 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli |
| Moetapele-mw | Litlhaloso tsa Mechini |
| Matlo | 45 Tšepe kapa motsoako oa tšepe o sehiloeng habonolo |
| Sehokedi | Ts'epe e sa beng le mabali |
| Kopana le Basali: | koporo |
| Rohs | lumellana |
| Boima ba 'mele | 0.10kg |

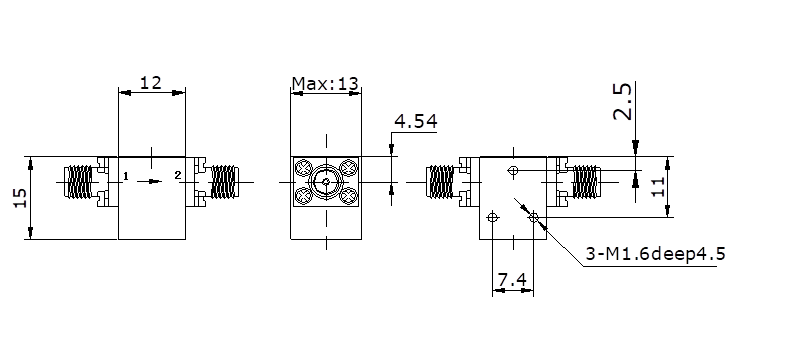

Setšoantšo sa Outline:
Litekanyo tsohle ka mm
Mamello ea Tlhaho ± 0.5(0.02)
Mamello ea Likoti tse Mount ±0.2(0.008)
Lihokelo Tsohle:2.92-F

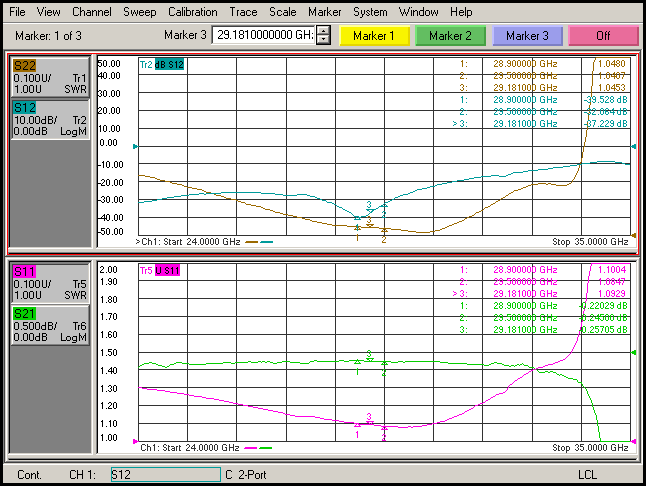

| Moetapele-mw | Lintlha tsa Tlhahlobo |
