LPD-18/40-4S Broadband Millimeter Wave Planar Power Combiner

Mofuta oa Nomoro:LPD-18/40-4S Maqhubu a maqhubu: 18-40Ghz

Tahlehelo ea ho Kena: 2.5dB Amplitude Balance: ± 0.7dB

Mohato oa Tekanyo: ± 10 VSWR: 1.65

Ho itšehla thajana: 18dB Sehokelo: 2.92mm-F

Mocheso: -32 ℃ho +85 ℃


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Kenyelletso ea LPD-18/40-4S

Kenyelletso ea sehlahisoa: barekisi, makala le barekisi ba matla

Lefats'eng la kabo ea mats'oao a lithelevishene, ho ba le lisebelisoa tse nepahetseng ho netefatsa phetiso e nepahetseng ho bohlokoa. Lisebelisoa tse tharo tse joalo tse phethang karolo ea bohlokoa ts'ebetsong ena ke li-distributors, li-tappers, le li-divider tsa motlakase. Le hoja li ka shebahala li tšoana qalong, ke habohlokoa ho utloisisa hore litšebeliso le bokhoni ba tsona li fapane ka ho feletseng. A re hlahlobeng ka hloko lisebelisoa tsena le bokhoni ba tsona.

Pele, a re buisaneng ka barekisi. Mosebetsi o ka sehloohong oa splitter ke ho arola lets'oao la TV la ho kenya ka har'a likanale tse ngata tse hlahisoang. E sebetsa joalo ka borokho, ho netefatsa hore lets'oao le ajoa ka ho lekana libakeng tse ngata. Ebang ke sebaka sa bolulo, hotele kapa setsi sa khoebo, sekhechana se thusa mocha o mong le o mong ho amohela lipontšo tsa cable TV ka matla le ka ho hlaka.

Ka lehlakoreng le leng, makala a sebeletsa morero o fapaneng. Mosebetsi oa eona ke ho fepa karolo ea lets'oao le fetisoang la cable TV mohala oa lekala kapa terminal ea mosebelisi, ha lets'oao le setseng le ntse le tsoela pele ho fetisoa ka tsela ea pele. Li-tappers li thusa ho feto-fetoha ha kabo ea matšoao, ho lumella ba ngolisitseng kapa makala hore ba fumane karolo e ikhethileng ea lets'oao la cable TV. Sesebelisoa sena se bohlokoa haholo maemong ao libaka kapa lihlopha tse itseng li hlokang likanale tse inehetseng ho ipapisitse le likhetho kapa litlhoko tsa bona.

Moetapele-mw Tlhaloso

Mofuta oa No: LPD-18/40-4SBroadband Millimeter Wave Planar Power Combiner

Marang-rang: 18000 ~ 40000MHz
Tahlehelo ea Kenyelletso: ≤2.5dB
Amplitude Balance: ≤±0.7dB
Phase Balance: ≤± 10 deg
VSWR: ≤1.65 : 1
Ho behwa ka thoko: ≥18dB
Tšitiso: 50 OHMS
Lihokelo : 2.92-Mosali
Thempereichara ea ho sebetsa: -32℃ho+85℃
Ho sebetsana le Matla: 20 Watts

Maikutlo:

1, Se kenyeletse tahlehelo ea Khopolo 6db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1

Moetapele-mw Litlhaloso tsa Tikoloho
Mocheso oa Ts'ebetso -30ºC ~ +60ºC
Mocheso oa polokelo -50ºC ~ +85ºC
Ho thothomela 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis
Mongobo 100% RH ho 35ºc, 95%RH ho 40ºc
Ho tshoha 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli
Moetapele-mw Litlhaloso tsa Mechini
Matlo Aluminium
Sehokedi ternary alloy three-partalloy
Kopana le Basali: boronse ea beryllium e entsoeng ka khauta
Rohs lumellana
Boima ba 'mele 0.15kg





Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo tsohle: 2.92-Mosali

4-40-4

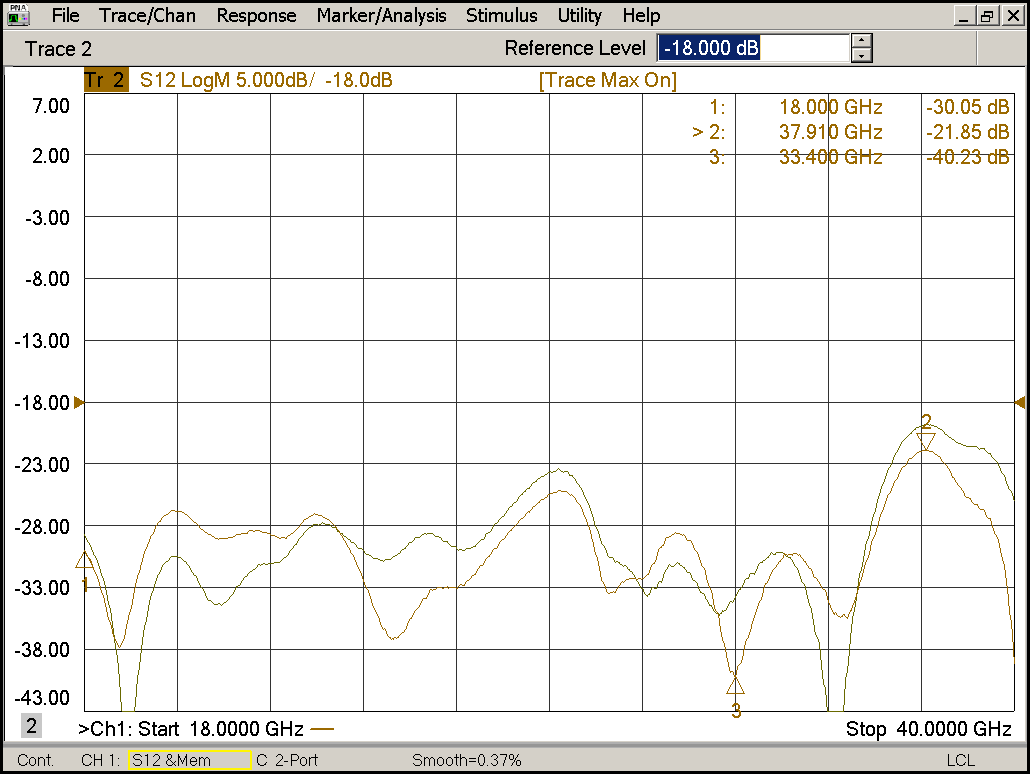

Moetapele-mw Lintlha tsa Tlhahlobo
2.1
1.1
