LPD-2/18-12S 12-Way e kopanyang motlakase oa motlakase

Mofuta oa Nomoro:LPD-2/18-12S Khafetsa:2-18Ghz

Tahlehelo ea Kenyelletso:≤3.8 dB Amplitude Balance:±0.7dB

Phase Tekanyo: ± 6 VSWR: ≤1.5

Ho itšehla thajana:≥17dB Sehokelo:SMA-F

Matla: 20w


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Selelekela ho 12 way power divider

Se re khethollang ho baphadisani ba rona ke boitlamo ba rona bo sa thekeseleng ba ho kgotsofatsa bareki. Re lumela ka tieo hore re ka theha likamano tse matla le tse tšoarellang le bareki ba rona ka ho fana ka tšehetso e ke keng ea lekanngoa ea tekheniki le ho araba lipotso kapele. Re sebetsa haufi-ufi le bareki ba rona ho utloisisa litlhoko tsa bona le ho ba fa litharollo tse entsoeng ka mokhoa o lumellanang le litebello tsa bona.

Ntle le boitlamo ba rona ba boleng le khotsofalo ea bareki, re etelletsa pele boqapi le ntlafatso e tsoelang pele. Sehlopha sa rona sa litsebi tsa R&D se tsoela pele ho lekola mahlale a macha, lisebelisoa le lits'ebetso tsa tlhahiso ho ntlafatsa ts'ebetso le katleho ea lihlahisoa tsa rona. Re ikitlaelletsa ho lula re le ka holim'a mekhoa ea indasteri mme ka boikhohomoso re fa bareki ba rona litharollo tsa maemo a holimo.

Hore na o hloka motsoako o tloaelehileng oa Broadband 12 way divider kapa litharollo tse ikhethileng, Chengdu Leader Microwave Technology Co., Ltd. ke molekane oa hau ea tšepahalang. Re lumela bokhoni ba rona ba ho fana ka lihlahisoa tse sa fihlelleng feela empa li feta litlhoko tsa hau. Ikopanye le rona kajeno ho hlahloba hore na lihlahisoa tsa rona tsa microwave le millimeter wave li ka ntlafatsa lits'ebetso tsa hau joang le ho tsamaisa katleho ea hau.

Moetapele-mw Tlhaloso

Mofuta oa No: LPD-2 / 18-12S Power Divider / Combiner Specifications

Marang-rang: 2000-18000MHz
Tahlehelo ea Kenyelletso: ≤3.8dBdB
Amplitude Balance: ≤±0.7dB
Phase Balance: ≤± 6deg
VSWR: ≤1.5: 1
Ho behwa ka thoko: ≥17dB
Tšitiso: 50 OHMS
Ho sebetsana le Matla: 20Watt
Lihokelo tsa Boema-kepe: SMA-Mosali
Thempereichara ea ho sebetsa: -30 ℃ ho ea + 60 ℃



Maikutlo:

1, Se kenyeletse tahlehelo ea Khopolo 10.79db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1

Moetapele-mw Litlhaloso tsa Tikoloho
Mocheso oa Ts'ebetso -30ºC ~ +60ºC
Mocheso oa polokelo -50ºC ~ +85ºC
Ho thothomela 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis
Mongobo 100% RH ho 35ºc, 95%RH ho 40ºc
Ho tshoha 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli
Moetapele-mw Litlhaloso tsa Mechini
Matlo Aluminium
Sehokedi ternary alloy three-partalloy
Kopana le Basali: boronse ea beryllium e entsoeng ka khauta
Rohs lumellana
Boima ba 'mele 0.3kg

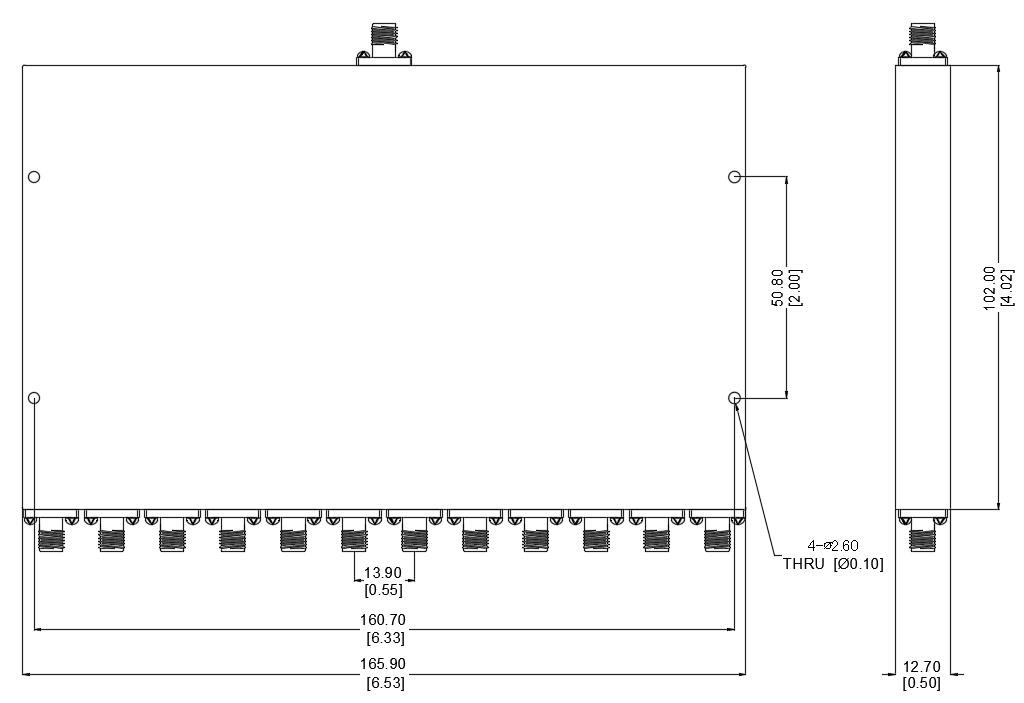

Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo Tsohle: SMA-Female

2-18-12
Moetapele-mw Lintlha tsa Tlhahlobo

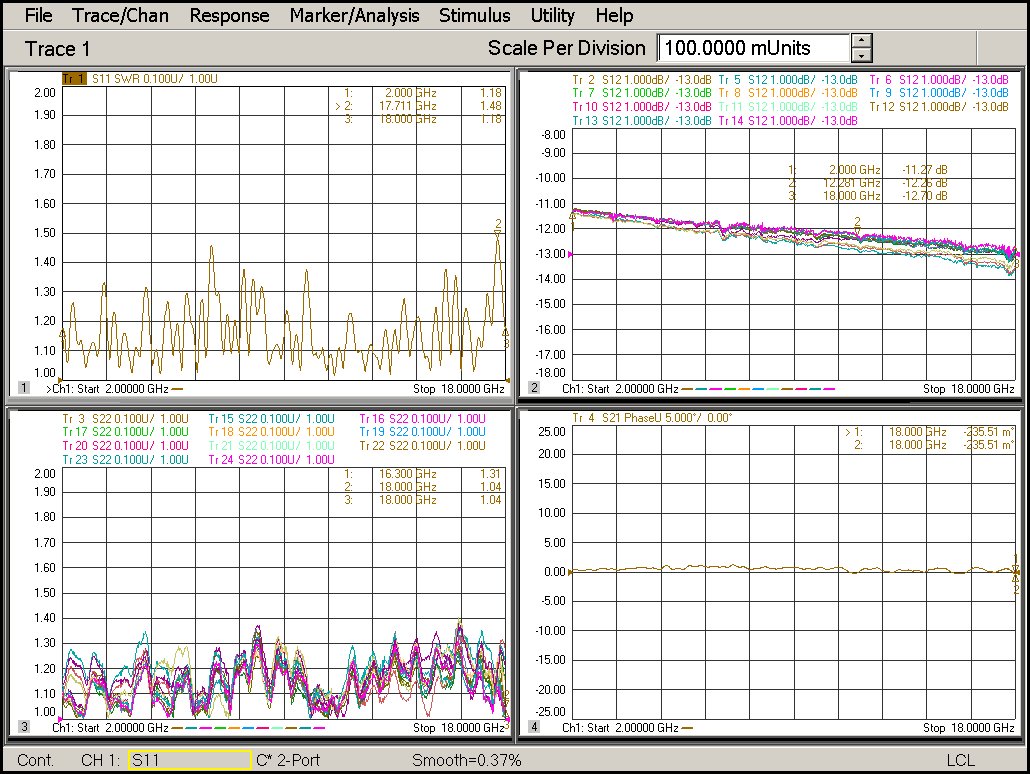

02.1

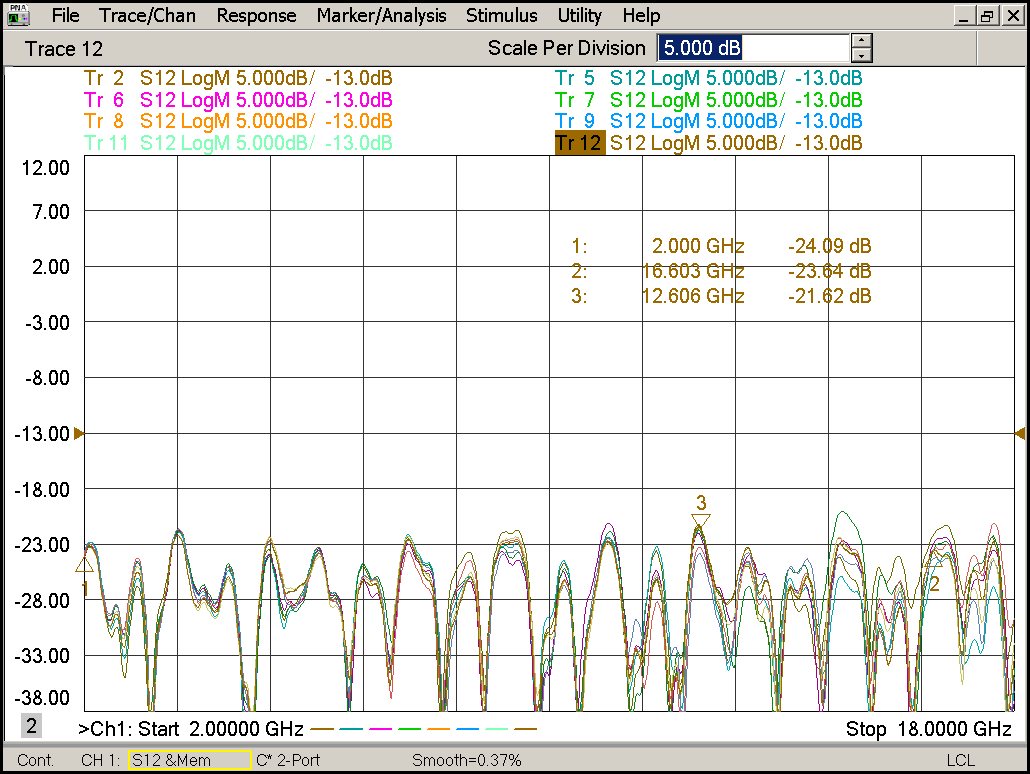

02.2
