LDC-0.5/6-10S 10dB Directional Coupler Ka 500-6000mhz

Mofuta:LDC-0.5/6-10S

Maqhubu a maqhubu: 0.5-6Ghz

Khokahano ka Lebitso:10±1.0

Tahlehelo ea ho Kena: 1.2dB

Boikutlo ba ho Kopanela:±0.7

Tsamaiso: 17dB

VSWR:1.3

Lihokelo: SMA

Matla: 50w


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Moetapele-mw Selelekela ho Banyalani

Chengdu leader microwave Tech.,(moetapele-mw) the 10DB single directional coupler. Ka lebelo la maqhubu a 0.5-6Ghz, coupler ena e etselitsoe ho fana ka ho itšehla thajana ho phahameng le tahlehelo e tlaase ea ho kenya bakeng sa ts'ebetso e phahameng ka ho fetisisa lits'ebetsong tse fapaneng.

10DB single directional coupler e entsoe ho fihlela litlhoko tse batloang ke mekhoa ea sejoale-joale ea puisano. Hore na o sebetsa likhokahanong tsa mehala, sefofane, kapa indasteri efe kapa efe e itšetlehileng ka matshwao a maqhubu a phahameng, coupler ena ke tharollo e phethahetseng bakeng sa litlhoko tsa hau.

E 'ngoe ea likarolo tsa bohlokoa tsa coupler ena ke bokhoni ba eona bo phahameng ba ho itšehla thajana. Ka ho itšehla thajana ha bonyane ba 10dB, sesebelisoa sena se tiisa hore matšoao a arohane ka katleho le tšitiso e fokotsehile. Sena se bohlokoa bakeng sa ho boloka botsitso ba matšoao le ho netefatsa puisano e tšepahalang maemong a rarahaneng a RF.

Moetapele-mw Tlhaloso

Nomoro ea mofuta:LDC-0.5/6-10S

Che. Paramethara Bonyane E tloaelehileng Boholo Diyuniti
1 Sebaka sa maqhubu 0.5 6 GHz
2 Kopanya ka Lebitso 10 dB
3 Ho Nepaha ha Ho Kopanya ±1 dB
4 Kopanya Sensitivity to Frequency ±0.7 dB
5 Tahlehelo ea Kenyelletso 1.2 dB
6 Directivity 17 dB
7 VSWR 1.3 -
8 Matla 80 W
9 Sebaka sa Mocheso oa Ts'ebetso -45 +85 ˚C
10 Tšitiso - 50 - Ω



Maikutlo:

1.Kenyelletsa tahlehelo ea Khopolo 0.46db 2.Tekanyo ea matla ke ea mojaro vswr ho feta 1.20:1

Moetapele-mw Litlhaloso tsa Tikoloho
Mocheso oa Ts'ebetso -30ºC ~ +60ºC
Mocheso oa polokelo -50ºC ~ +85ºC
Ho thothomela 25gRMS (15 degrees 2KHz) mamello, hora e le 'ngoe ka axis
Mongobo 100% RH ho 35ºc, 95%RH ho 40ºc
Ho tshoha 20G bakeng sa 11msec half sine wave,3 axis mahlakore ka bobeli
Moetapele-mw Litlhaloso tsa Mechini
Matlo Aluminium
Sehokedi ternary alloy three-partalloy
Kopana le Basali: boronse ea beryllium e entsoeng ka khauta
Rohs lumellana
Boima ba 'mele 0.15kg

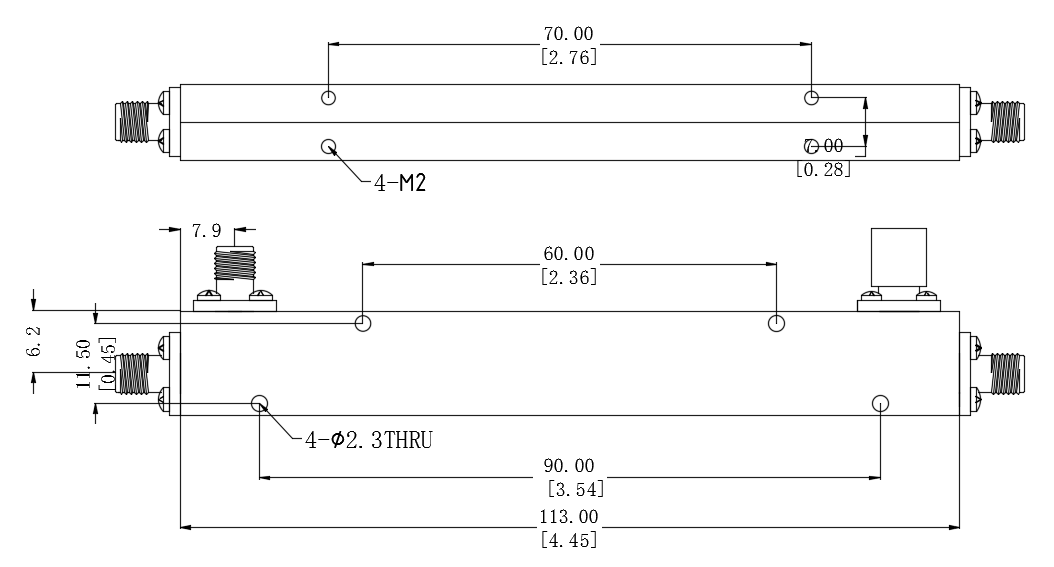

Setšoantšo sa Outline:

Litekanyo tsohle ka mm

Mamello ea Tlhaho ± 0.5(0.02)

Mamello ea Likoti tse Mount ±0.2(0.008)

Lihokelo Tsohle: SMA-Female

0.5-6-10

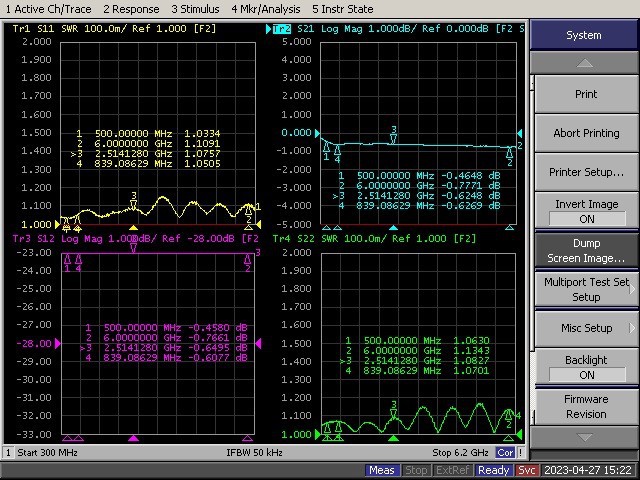

Moetapele-mw Lintlha tsa Tlhahlobo

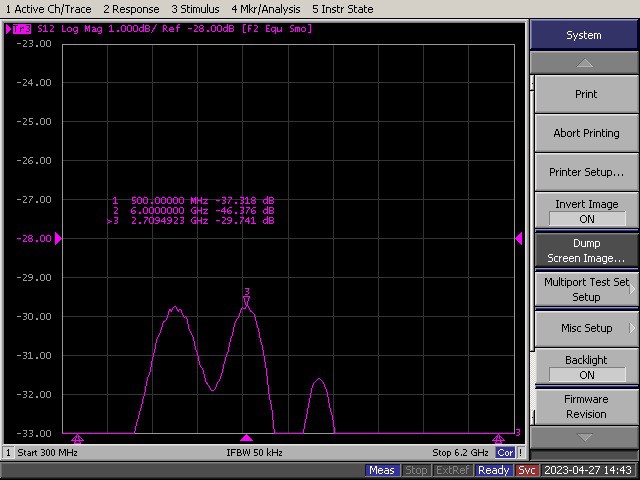

0.5-6-3

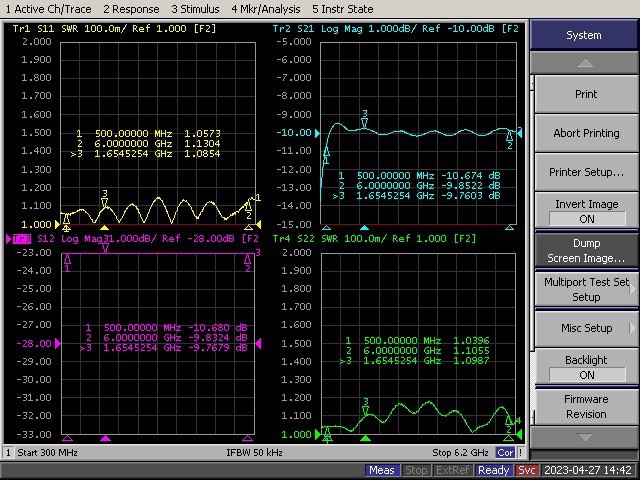

0.5-6-2
0.5-6-10-1
